8P8C tap-down recessed low profile RJ45 connector shielded without LED

Name: 8P8C tapdown recessed low profile RJ45 connector shielded without LED
Brand: Heling
Price: 0.18 USD

Brand Name : Heling

Model Number : MJ88B1-BX11-HLRV1-X

Certification : RoHS, SGS

Place of Origin : China

MOQ : 1000PCS

Price : 0.18

Payment Terms : T/T in advance

Supply Ability : 500K per month

Delivery Time : 2-5 weeks

Packaging Details : Tray or tape and reel

Positions : 8

Contacts : 8

Orientation : Right angled

Tab : Down

Contacts plating : 1U", 3u", 6u", 15u", 30u"

Soldering : Through hole

Shielded : Full shielded

Led : Without

Packing : Tray

Contact Now

Product description: 8P8C tap-down recessed low profile RJ45 connector shielded without LED

Material

Insulator:High Temp Nylon flammability rating UL94V-0. Available in black, yellow, blue, and red
Contacts: Phosphor Bronze with gold thickness options(6u”, 15u”, 30u”, 50u”) over 50u” minimum nickel on contact mating area

Electrical

Voltage Rating:125 V AC(RMS)
Current Rating:1.5 AMP
Contact Resistance: 20mΩ Max.
Insulation resistance: 500MΩ Min.
Dielectric withstanding voltage: 1000 VAC RMS 60Hz, 1 Min.

Mechanical

Durability:750 mating & unmating cycles

Mated Retention Force: 7.7kg

Operating Temperature:-40°C to +85°C

8P8C tap-down recessed low profile RJ45 connector shielded without LED

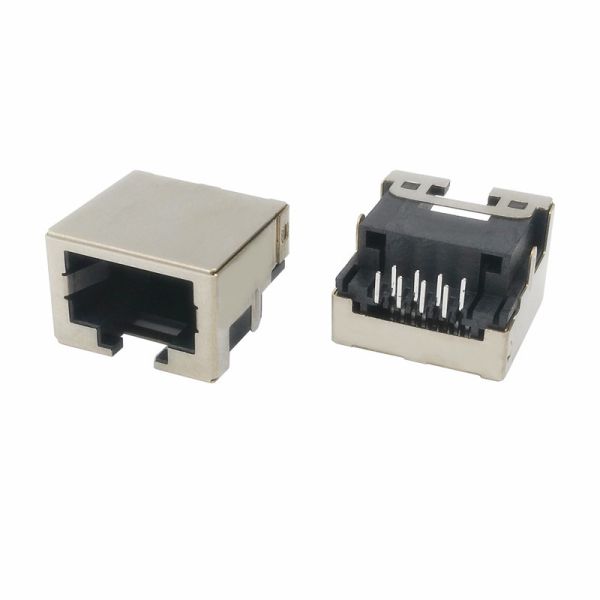

8P8C tap-down recessed low profile RJ45 connector shielded without LED Images
